The rectangular frame is firstly fixed directly into the ceiling. It's easy to take the LED fitting in and out of the frame for post installation mantainance. No risk of damage.

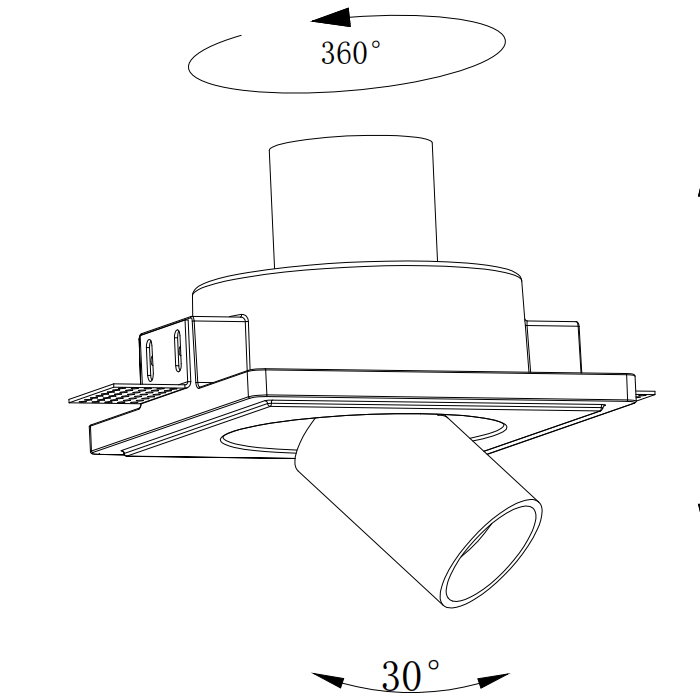

Once the rectangular frame installed into the ceiling board, the housing blends seamlessly with the surround architecture. the LED fitting can be stretchable and tiltable 30º beam angles.
More Details
| Lamp type | COB |
| Lamps included | Yes |
| Dimension | φ120*85mm |
| Cut-out | φ125mm |
| Material | Plaster |
| IP rating | IP20 |
| Wiring class | Class II |
| Max wattage | COB 6W |
| MOQ | 200 PCS |
| Product code | GC-1070 |
Installation
Putting on a pair of clean gloves!
Screwing the bracket on the plaster fixture(no need to screwing when the bracket is fixed)
Cutting out a hole
Cutting off power and Wiring the lamp holder
Tilting the fixture and insert into the ceiling.
Holding the fixture down and put two screws through the plasterboard
Plaster or fill the gap, allow this to dry.
When dry insert lamp and position spring clip to retain the lamp
Key Feature
Made of durable high strength plaster
Can be painted if preferred
Provides both up & down lighting
Dimmable with compatible dimmer switch and dimmable bulbs
Can be directional
Package
Poly foam or carbord protected
Can be customized for QTY above 1000 pcs
Production Capacity
Down light: 100,000 pcs per months
Wall light: 60,000 pcs per months
Leadtime: 35-40 days
Over 2,000 sets of mouldings
