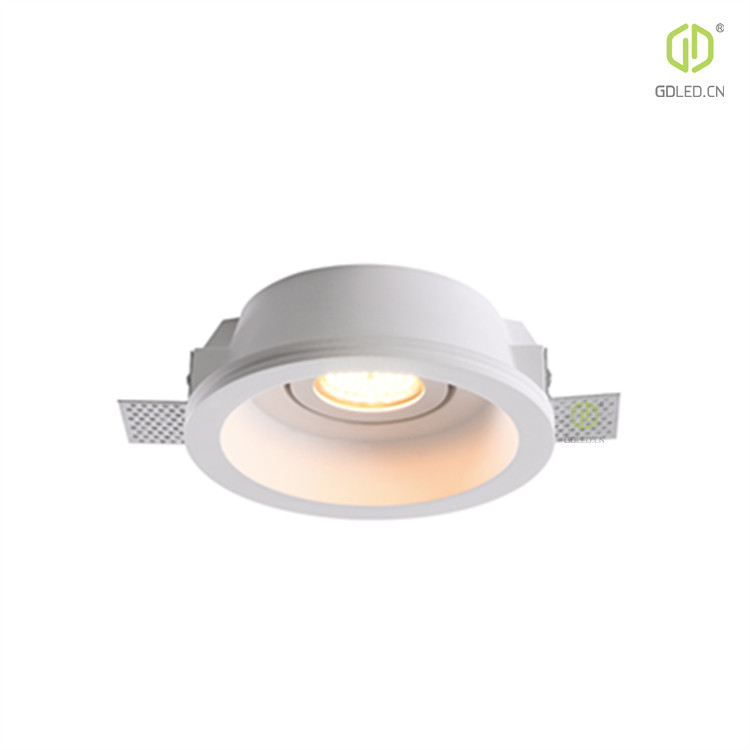

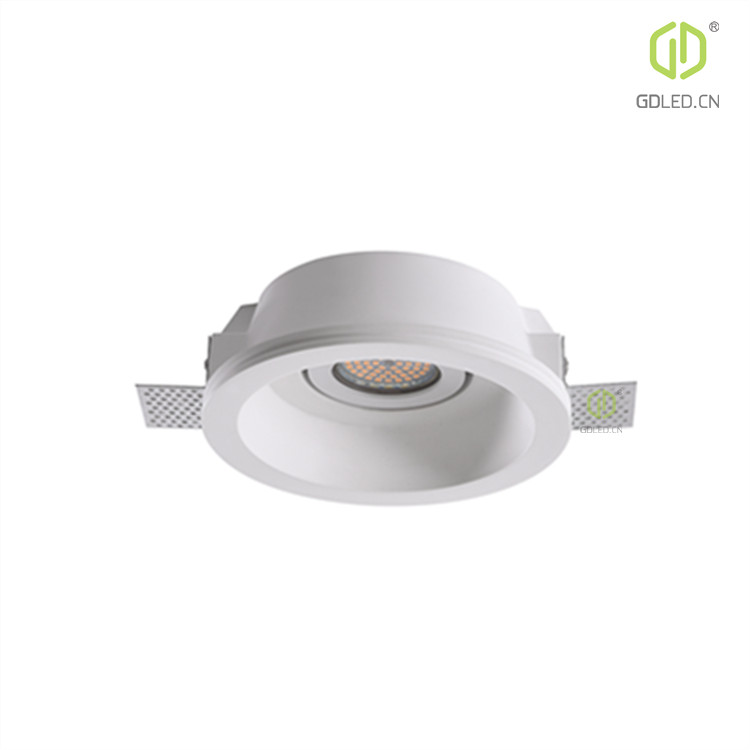

A very sleek and minimalist spotlight, you install this fixture into the plaster board before plastering, then you skim up to the spotlight hole covering the gap between the light fixture and ceiling boars.
Inside a adjustable or rotatable LED GU10 with maximum 15 degree beam angle. Thelamp is easy to take off and change so ongoing maintenance of this is easy.
More Details
| Lamp type | GU10 |
| Lamps included | Yes |

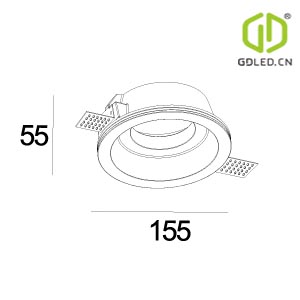

| Dimension | φ155*57mm |
| Cut-out | φ160mm |
| Material | Plaster |
| IP rating | IP20 |
| Wiring class | Class II |
| Max wattage | LED 10W |
| MOQ | 200 PCS |
| Product code | GC-1038 |
Installation
Putting on a pair of clean gloves!
Screwing the bracket on the plaster fixture(no need to screwing when the bracket is fixed)
Cutting out a hole
Cutting off power and Wiring the lamp holder
Tilting the fixture and insert into the ceiling.
Holding the fixture down and put two screws through the plasterboard
Plaster or fill the gap, allow this to dry.
When dry insert lamp and position spring clip to retain the lamp
Key Feature
Made of durable high strength plaster
Can be painted if preferred
Requires GU10 lamp max 10W LED
Tiltable to max 15 。
Package
Poly foam or carbord protected
Can be customized for QTY above 1000 pcs
Production Capacity
Down light: 100,000 pcs per months
Wall light: 60,000 pcs per months
Leadtime: 35-40 days
Over 2,000 sets of mouldings
