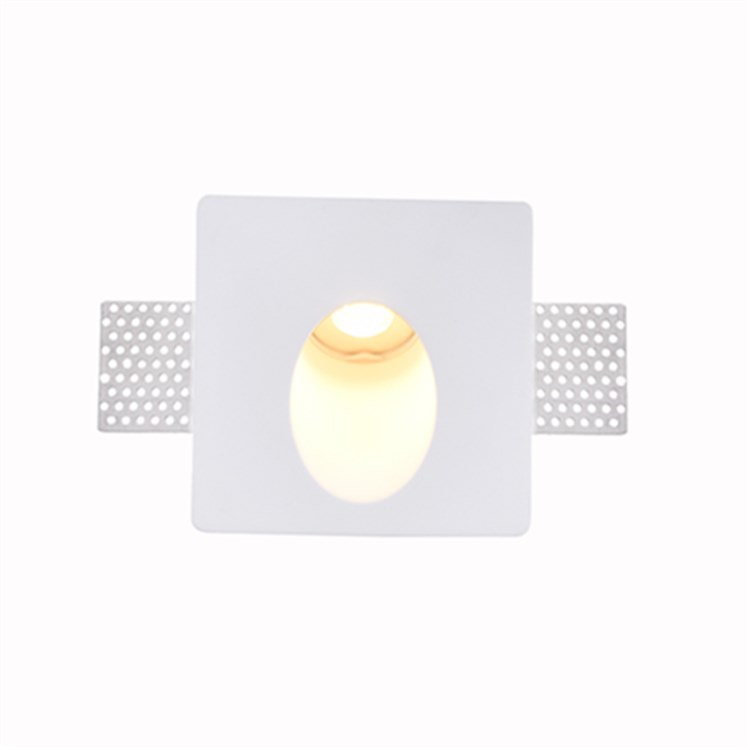

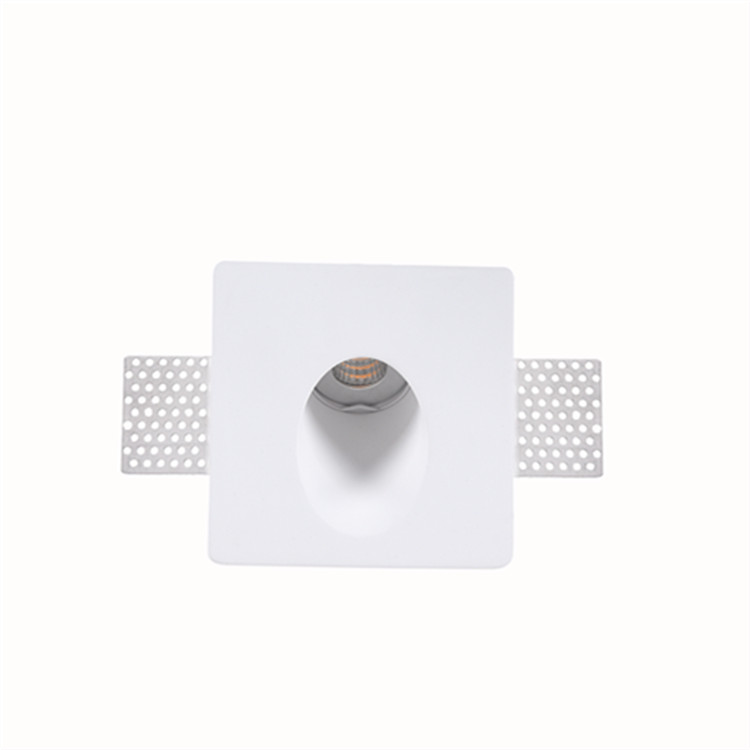

The gypsum step light recessed light have small oval openings through which the light shines.
The fittings are made of plaster and are recessed, creating a unique effect where the plaster blends into the wall plaster, and only the actual light is visible. This gives a truly elegant feel to the area.
More Details
| Lamp type | GU10 |
| Lamps included | No |

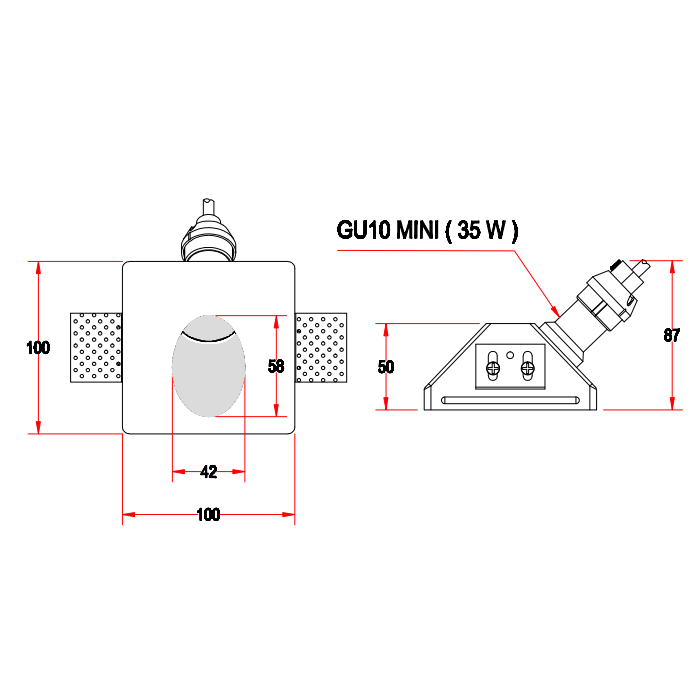

| Dimension | 100*100*50 mm |
| Cut-out diameter | 105*105 mm |
| Material | Plaster |
| IP rating | IP20 |
| Wiring class | Class II |
| Max wattage | LED 10W/Halogen 28W |
| MOQ | 200 PCS |
| Product code | GWR-3001 |
Installation
Putting on a pair of clean gloves!
Screwing the bracket on the plaster fixture(no need to screwing when the bracket is fixed)
Cutting out a hole
Cutting off power and Wiring the lamp holder
Tilting the fixture and insert into the wall/ceiling.
Holding the fixture down and put two screws through the plasterboard
Plaster or fill the gap, allow this to dry.
When dry insert lamp and position spring clip to retain the lamp
Key Feature
Made of high strength plaster
The bond between luminaire and wall is seamless
Can be painted in different finishes
Package
EPE protected
Can be customized for QTY above 1000 pcs
Production Capacity
Down light: 100,000 pcs per months
Wall light: 60,000 pcs per months
Leadtime: 30-45 days
Over 2,000 sets of mouldings
